2-WAY SOFT SEATED

d500 2way

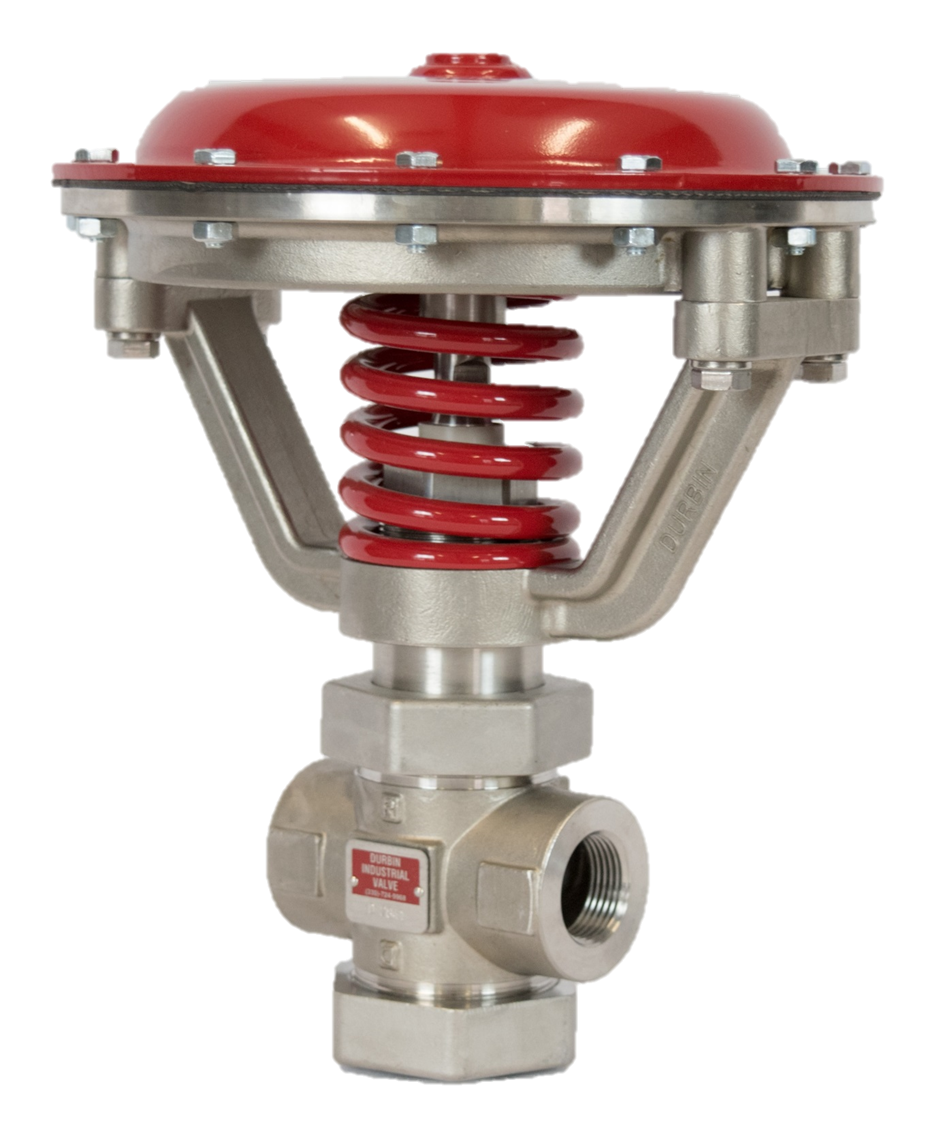

1 D500 2W ISO

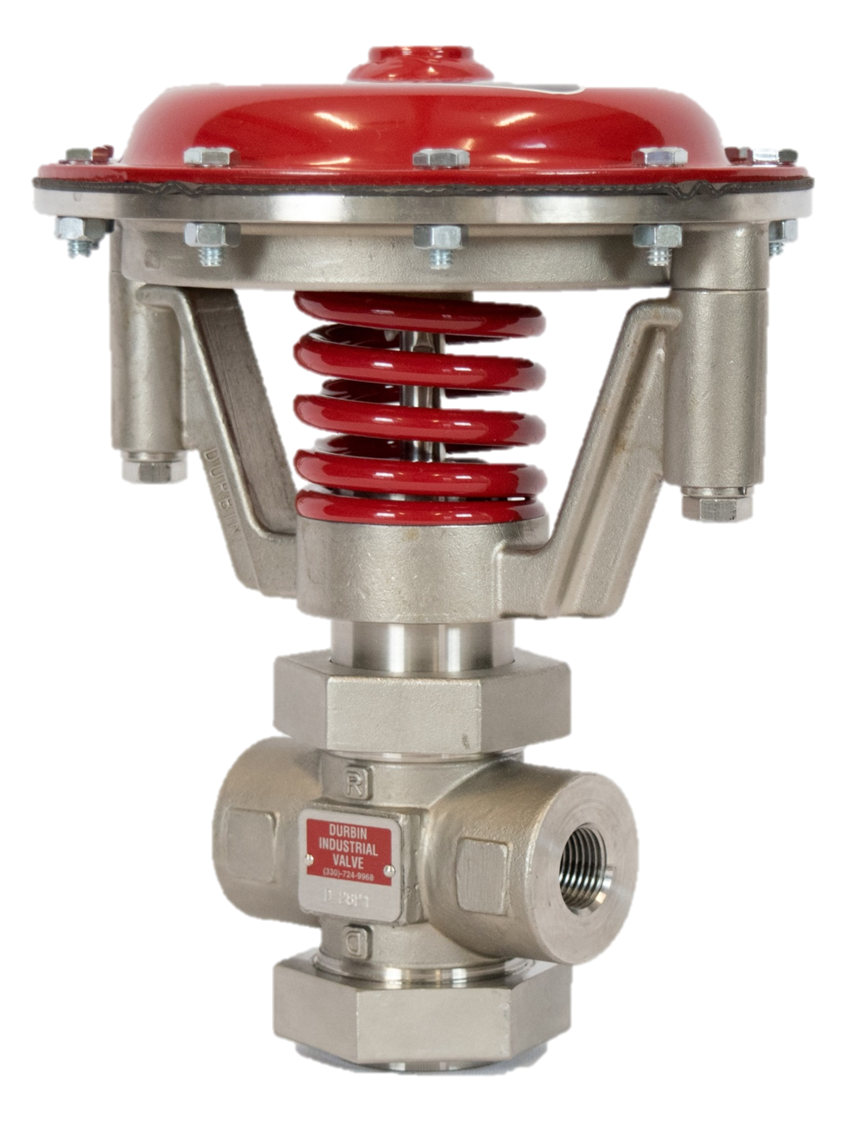

1-2 D500 2W ISO

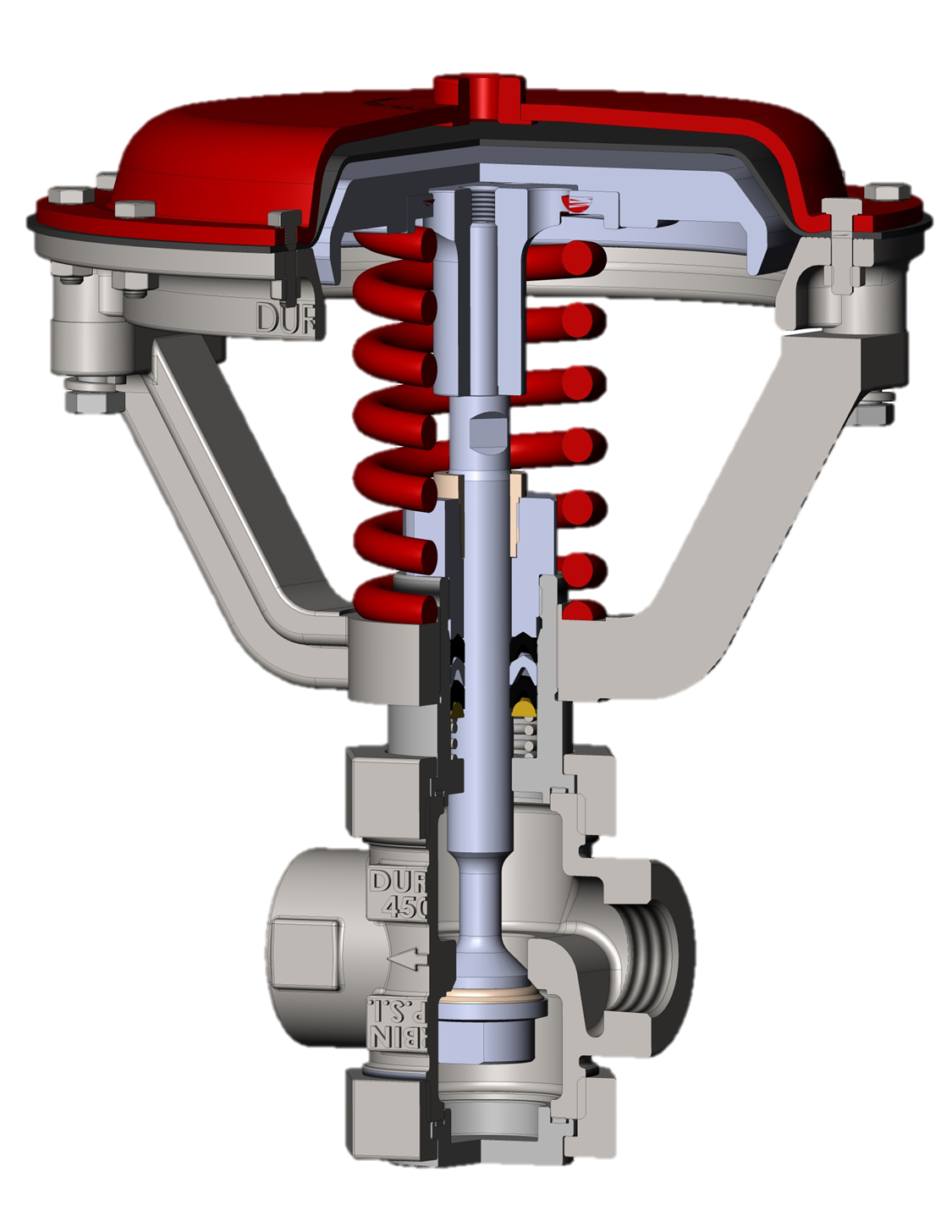

D2841
previous arrow
next arrow

Valve Type: Globe

Function: 2-way / Isolation

Action: Normally Closed or Normally Open

Actuation: Pneumatic

Pilot Range: 35-40 psi  (2.4-2.8 bar)

Sizes:  ½”-1¼”(DN 15 to DN 32)

Pressure Ratings: Up to 500 psi (34 bar)

Temperature Ratings: -40°F to 450°F  (-40°C to 231°C)

Connection Style: Threaded (NPT/BSPT)

Seat Type: Soft Seat

Leakage Rate: ANSI/FCI 70-2 class VI

Cv: Maximum of 30.25

Media: Most process fluid types; gas, liquids and steam


  • Overview: The Durbin 500# series provides the rugged durability of traditional process- control valves with the added benefits of modern technology and upgraded materials.  The valve is available in normally closed or normally open (fail-safe close or fail-safe open).


  • Materials of Construction: The Durbin 500# series is constructed of stainless steel to protect against the damaging effects of corrosion .  All wetted components are constructed from corrosion-resistant materials (CRAs) or are engineered plastic materials.

  • Application: This valve series is ideal for applications where a high cycle life and repeated positive shutoff is required. This 2-way valve can be used to isolate one process fluid from another, to supply fluid or to provide a fast evacuation if normally open.   Whether it is high-temperature steam, or low- temperature cooling water, the Durbin 500# series can handle the application with the reliability, durability and repeatability that customers desire.
