CATALOG

Valve Type: Globe

Function: 2-way/3-Way

Action: Normally Closed/Normally Open

Actuation: Pneumatic

Pilot Range: 35-40 psi  (2.4-2.8 bar)

Sizes: ½”-1¼”(DN 15 to DN 32)

Pressure Ratings: Up to 500 psi (34 bar)

Temperature Ratings: -40°F to 450°F  (-40°C to 231°C)

Connection Style: Threaded (NPT/BSPT)

Seat Type: Soft Seat

Leakage Rate: ANSI/FCI 70-2 class VI

Cv: Maximum of 30.25

Media: Most process fluid types; gas, liquids and steam

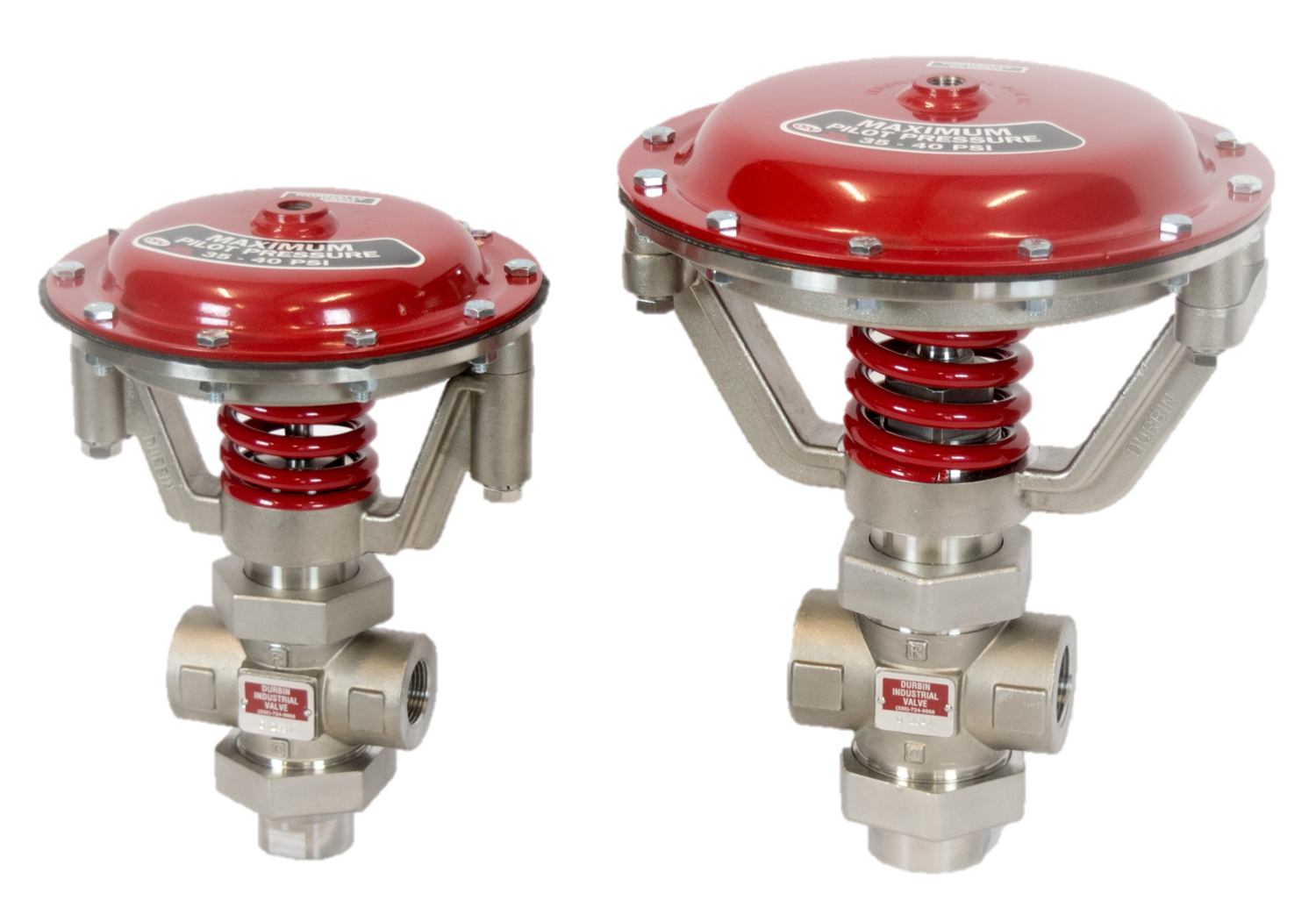

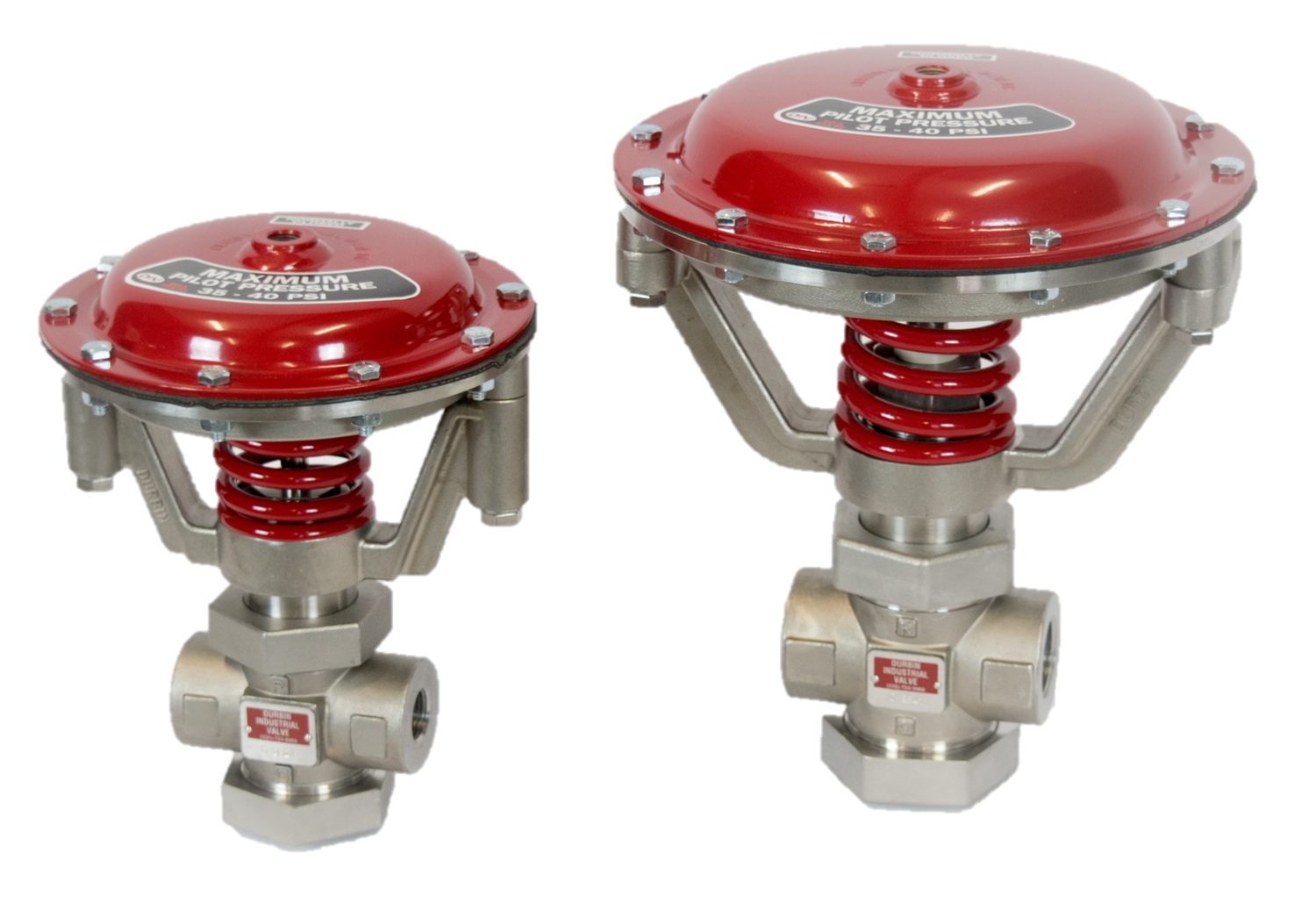

The Durbin 500# series provides the rugged durability of traditional process-control valves with the added benefits of modern technology and upgraded materials.  The complete stainless steel design makes corrosion concerns nonexistent and uses an engineered thermoplastic seat seal to provide a positive shutoff even after years of service.   Whether you need normally open or normally closed, 2-way isolation or 3-way directional, the Durbin 500# series has an option for your needs.  Select the valve type to the right to learn more.
