Features:

Valve Type: Spool

Function: 2 pressure/ 3-way directional

Action: Normally Closed

Actuation: Pneumatic

Pilot Range: 35-40 psi (2.4-2.8 bar)

Sizes: 1”-1-1/2” (DN 25 to DN 50)

Pressure Ratings: Up to 4000 psi (276 bar)

Temperature Ratings: -20°F to 160°F (-26°C to 71°C)

Connection Style: Threaded (NPT/BSPT)

Seat Type: Hard Seat

Leakage Rate: ANSI/FCI 70-2 class VI

Cv: Maximum of 29.5 (see chart below)

Media: Hydraulic media/water

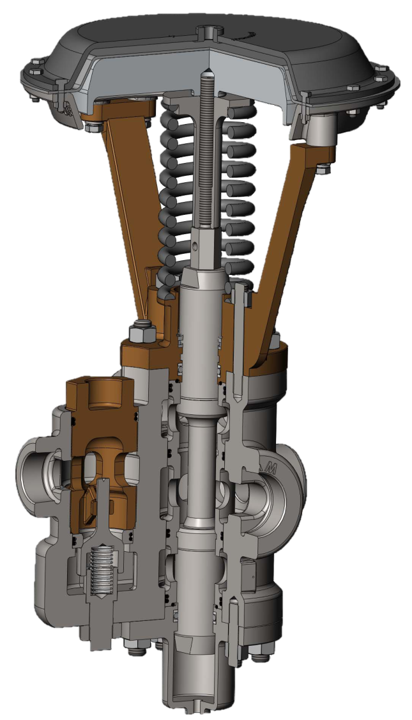

  • Overview: The Durbin two pressure hydraulic valve is used for press operations where a low pressure fluid and a high pressure fluid are utilized in a press/ram application. The valve is designed with an integrated low pressure check valve.


  • Materials of Construction: The Durbin 3-Way Two Pressure series is constructed of ASME pressure vessel stainless steel grade 300 series. The seat sleeve and stem components are machined from precipitation-hardenable material, giving this valve exceptional sealing ability over the life of the product. This tough and durable material can withstand the devastating effects caused by high velocity media flow through the flow channels.


  • Application: In many press operations, a low pressure fluid is used to close the ram. As the ram approaches the end of the travel, a higher pressure is required for the actual “press” process.  Once the high pressure fluid is initiated the integrated low pressure check valve protects the low pressure line.  High pressure inlet may be actuated by means of an automated kick in such as the Durbin D344-2000 series or a high pressure two way valve such as the Durbin D4800 series.

​RELATED DOCUMENTS

​Cut sheet

​3D File

​Parts List

HIGH PRESSURE ACTUATION

USING PNEUMATIC 2-WAY N/C

DEPICTED WITH DURBIN D4821

HIGH PRESSURE ACTUATION

USING AUTOMATIC KICK-IN

DEPICTED WITH DURBIN D344-2001


HIGH PRESSURE ACTUATION

USING AUTOMATIC KICK-IN

W/ DIAPHRAGM ACTUATOR

DEPICTED WITH DURBIN D344-2002
