Valve Type: Globe

Function: Control

Action: Normally Closed

Actuation: Pneumatic

Pilot Range: 3-15 psi / 6-30 psi (0.2-1.0 bar / 0.4-2.0 bar)

Sizes: ½”, ¾” (DN 15 to DN 20)

Pressure Ratings: Up to 500 psi (34 bar)  ASME Class 300

Temperature Ratings: -40°F to 450°F  (-40°C to 231°C)

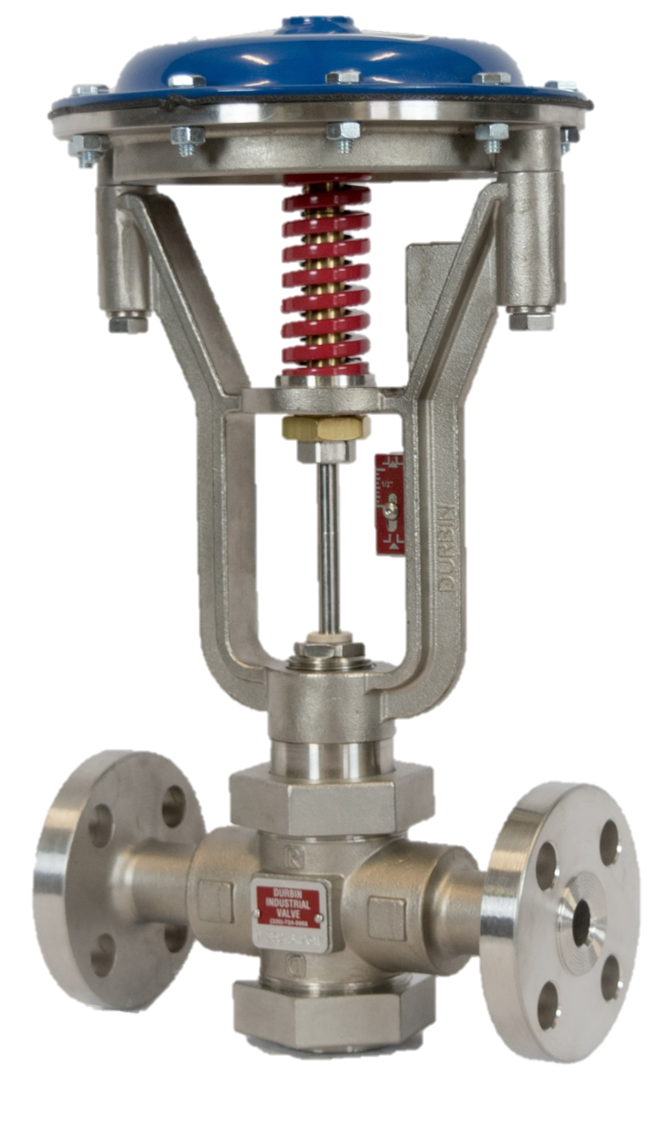

Connection Style: Threaded (NPT/BSPT) & Flanged (B16.5)

Seat Type: Soft Seat

Leakage Rate: ANSI/FCI 70-2 class VI

Cv: Maximum of 3.2

Flow Characteristics: Linear/Equal percentage hybrid

Media: Most process fluid types; gas, liquids and steam

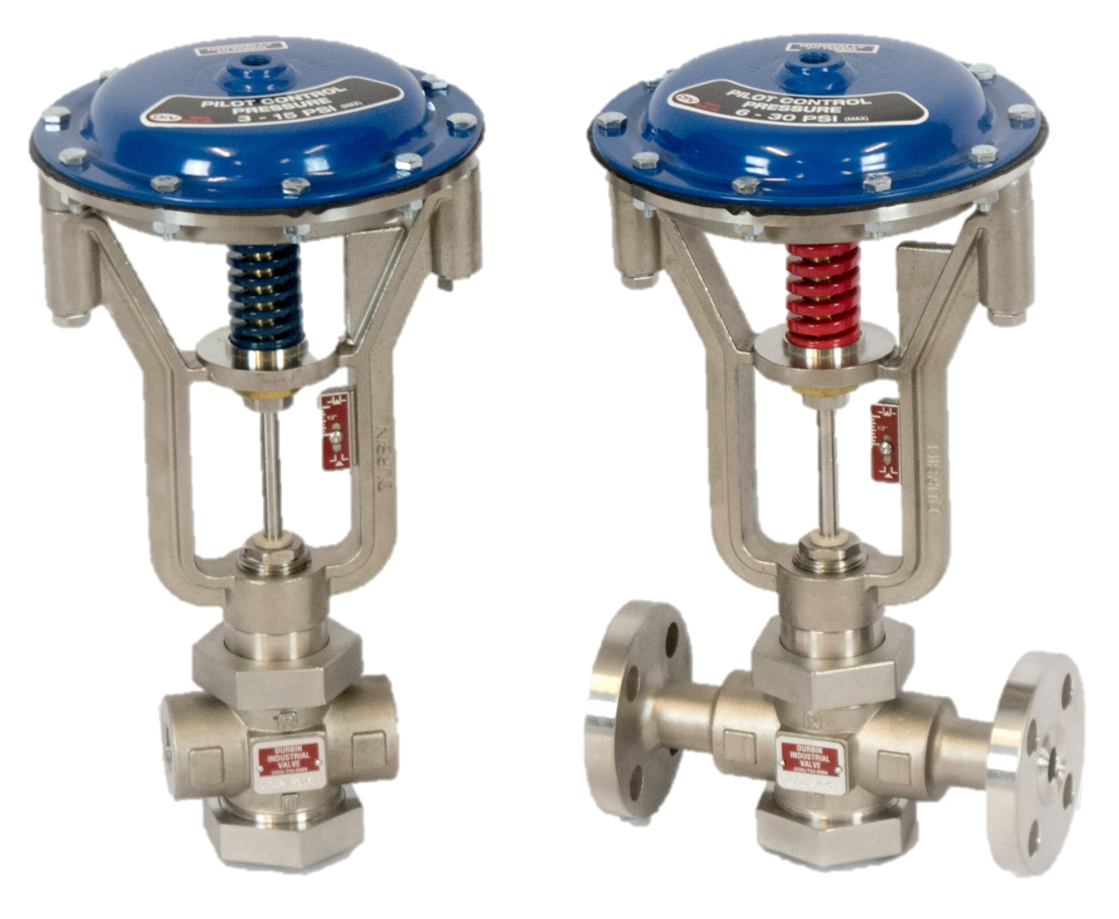

  • Overview: The Durbin Low-Flow control valve (LF ™) is engineered to provide accurate control of low to high pressures and/or temperatures while maintaining high energy efficiency and providing a long service life.

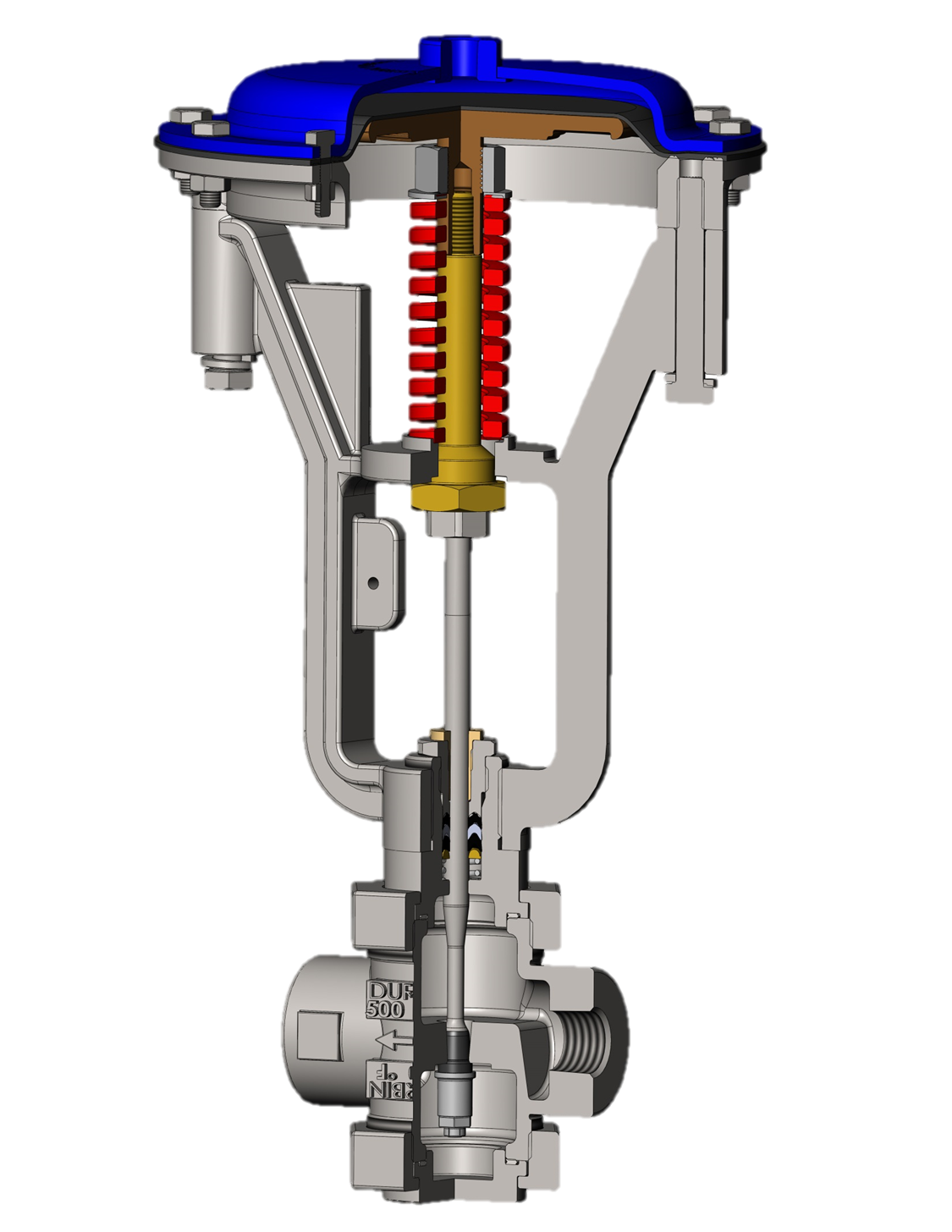

  • Materials of Construction:The Low-Flow’s wetted components are made entirely from corrosion-resistant materials. The valve body, actuating stem and seat are all constructed from stainless steel. The valve seal is made from a durable thermoplastic that withstands high temperatures and extreme process conditions. Packing consists of a strong PTFE material.


  • Application: The LF ™ is great for applications where precise control needs to be maintained from low to high temperatures and pressures using the same valve. The unique flow profile allows for very tight control up to 60% of travel then tapers quickly to allow for a large ramp rate.  This type of profile allows this valve to be used in a wide variety of applications where tight control and quick fill times are needed.
