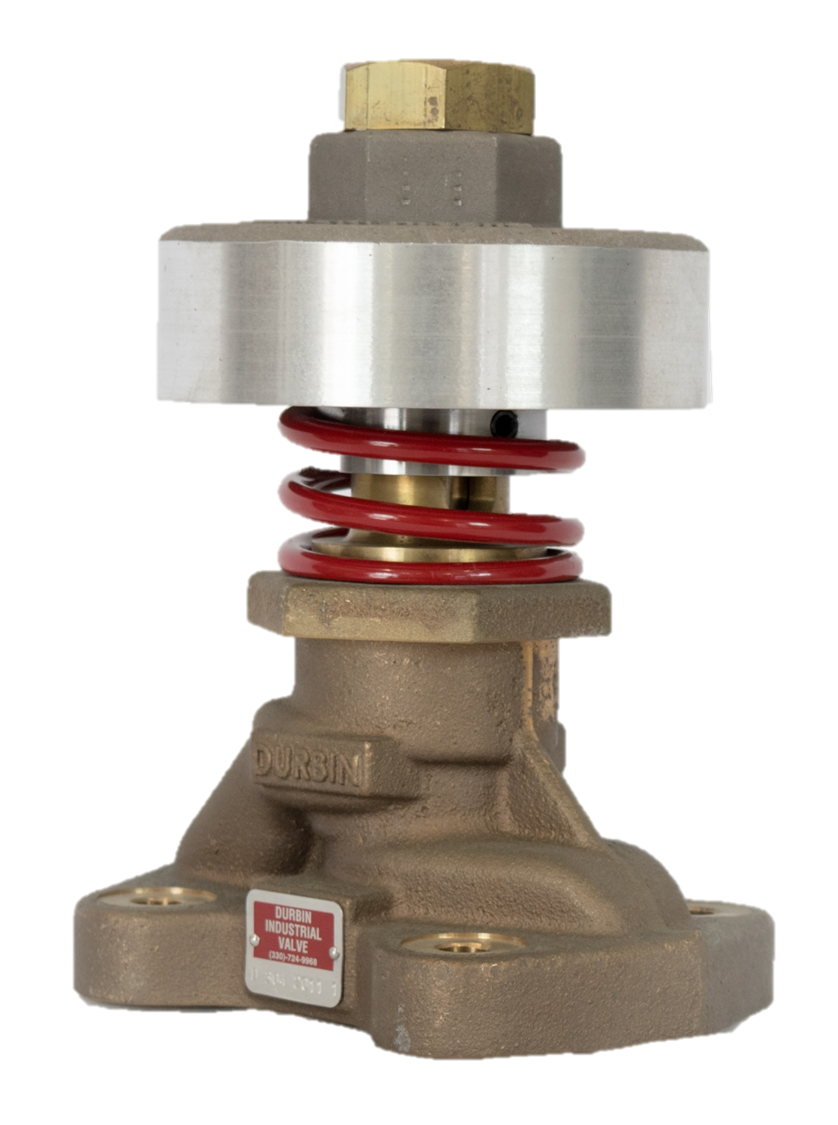

MANIFOLD ISO
MANIFOLD

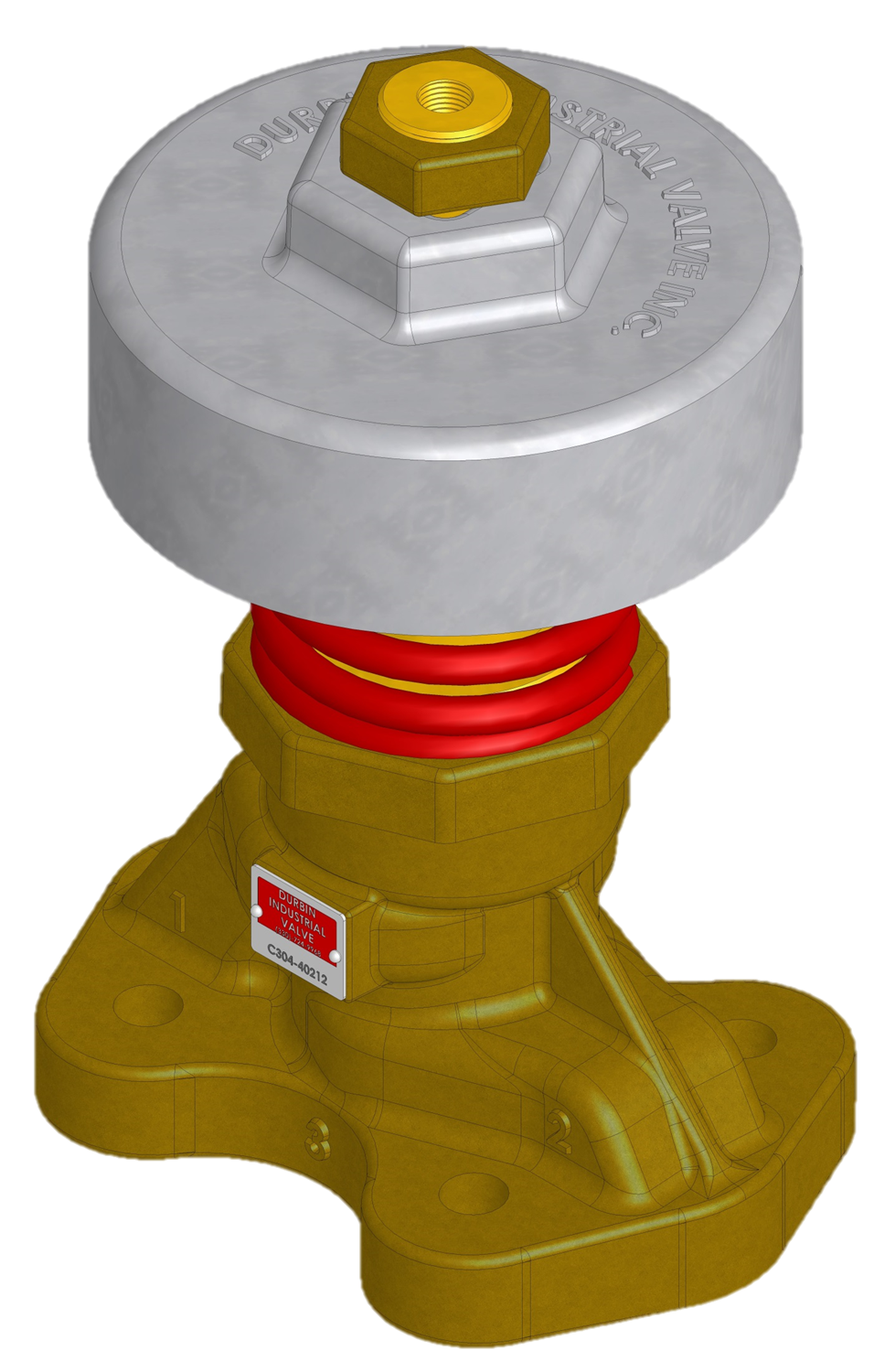

3W MANIFOLD-ISO

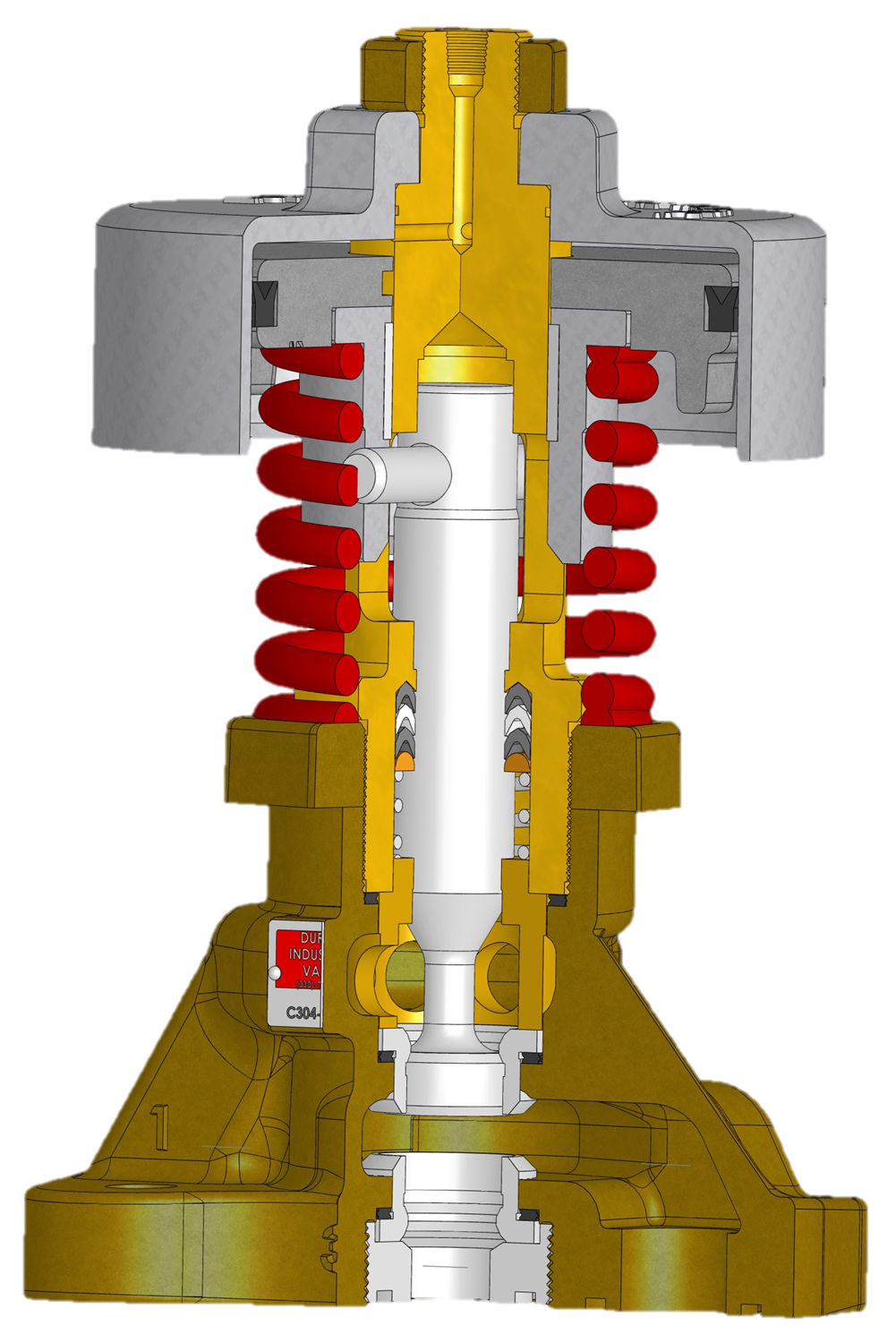

3W MANIFOLD

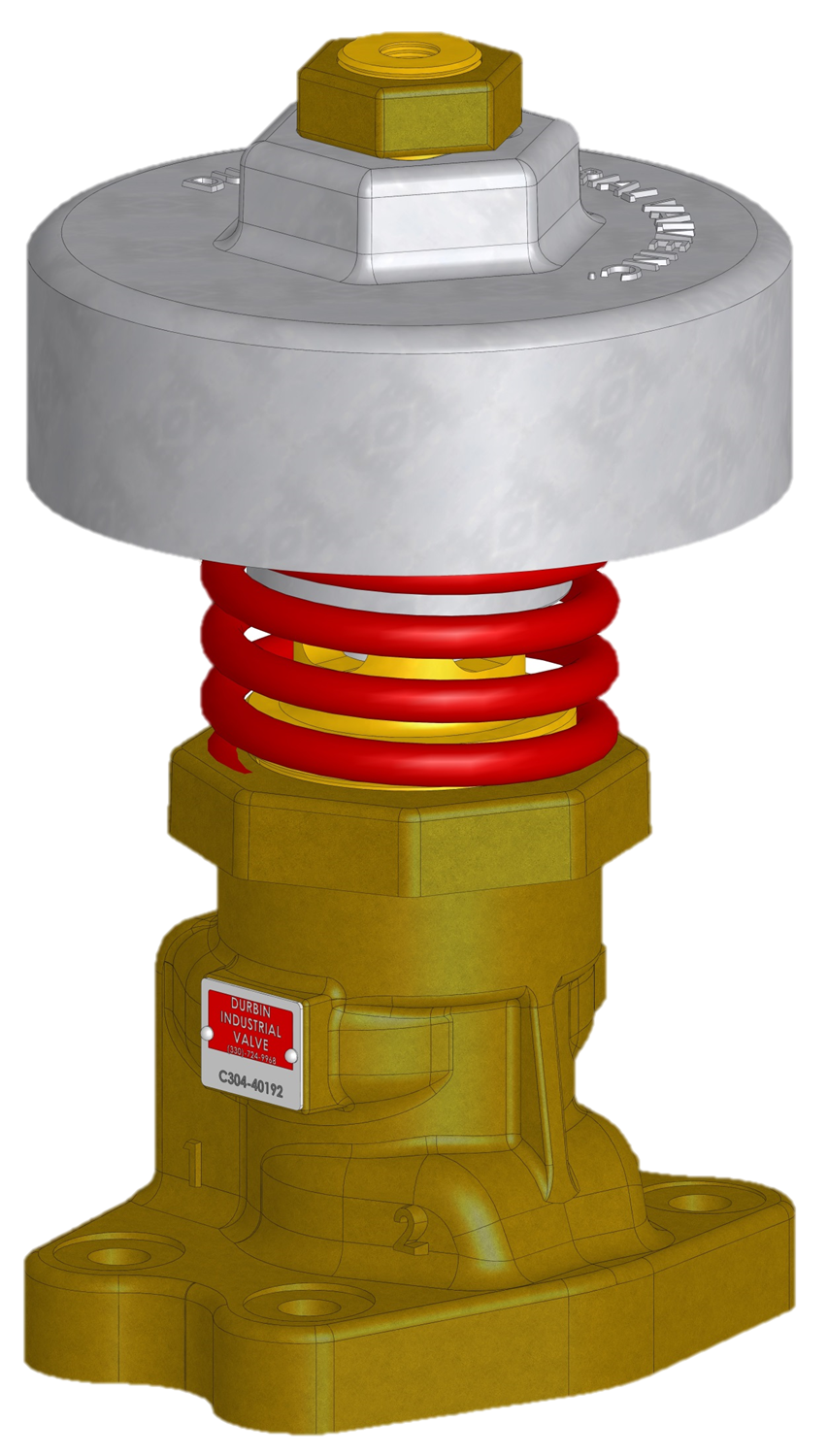

2W MANIFOLD
previous arrow
next arrow

Valve Type: Globe

Function: 2-way/3-Way

Action: Normally Closed/Normally Open

Actuation: Pneumatic

Pilot Range: 35-40 psi  (2.4-2.8 bar)

Sizes: ½”-1” (DN 15 to DN 25)

Pressure Ratings: Up to 500 psi (34 bar)

Temperature Ratings: -40°F to 450°F  (-40°C to 231°C)

Connection Style: Manifold

Seat Type: Soft Seat & Hard Seat

Leakage Rate: ANSI/FCI 70-2 class VI

Cv: Maximum of 20.52

Media: Most process fluid types; gas, liquids and steam

  • Overview: The Durbin SC style Manifold Replacement Series provides the rugged durability of traditional and legacy process-control valves with the added benefits of modern technology and upgraded materials.  The valve is available in normally closed or normally open , hard-seated or soft-seated, 2-way or 3-way, and on/off or shaping versions.


  • Materials of Construction: The Durbin SC style Manifold Replacement Series  is constructed of Naval Bronze to protect against the damaging effects of corrosion.  All wetted components are constructed from corrosion resistant materials (CRAs) or are engineered plastic materials.

  • Application: This valve series is ideal for applications where a high cycle life and repeated positive shutoff is required. This 2-way valve can be used to isolate one process fluid from another, to supply fluid or to provide a fast evacuation if normally open.   Whether it is high-temperature steam or low- temperature cooling water, the Durbin SC style Manifold Replacement Series can handle the application with the reliability, durability and repeatability that customers desire.
