Valve Type: Globe

Function: Control

Action: Normally Closed & Normally Open

Actuation: Pneumatic

Pilot Range: 3-15 psi  (0.2-1.0 bar)

Sizes: ½”- 2”   (DN 15 to DN 50)

Pressure Ratings: Up to 300 psi (21 bar)

Temperature Ratings: -40°F to 450°F  (-40°C to 231°C)

Connection Style: Threaded (NPT/BSPT)

Seat Type: Soft Seat

Leakage Rate: ANSI/FCI 70-2 class VI

Cv: Maximum of 35

Flow Characteristics: Linear

Media: Most process fluid types; gas, liquids and steam

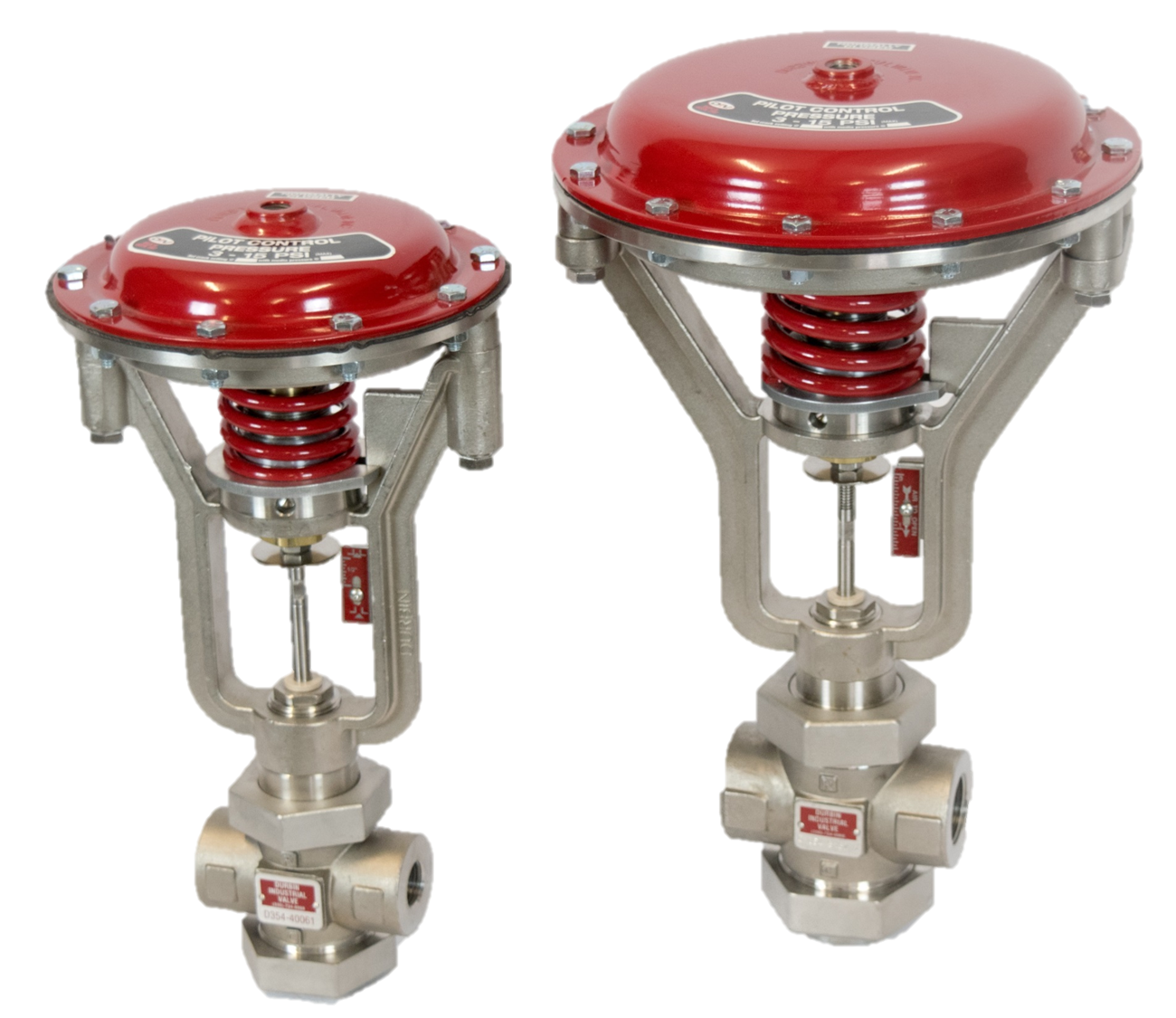

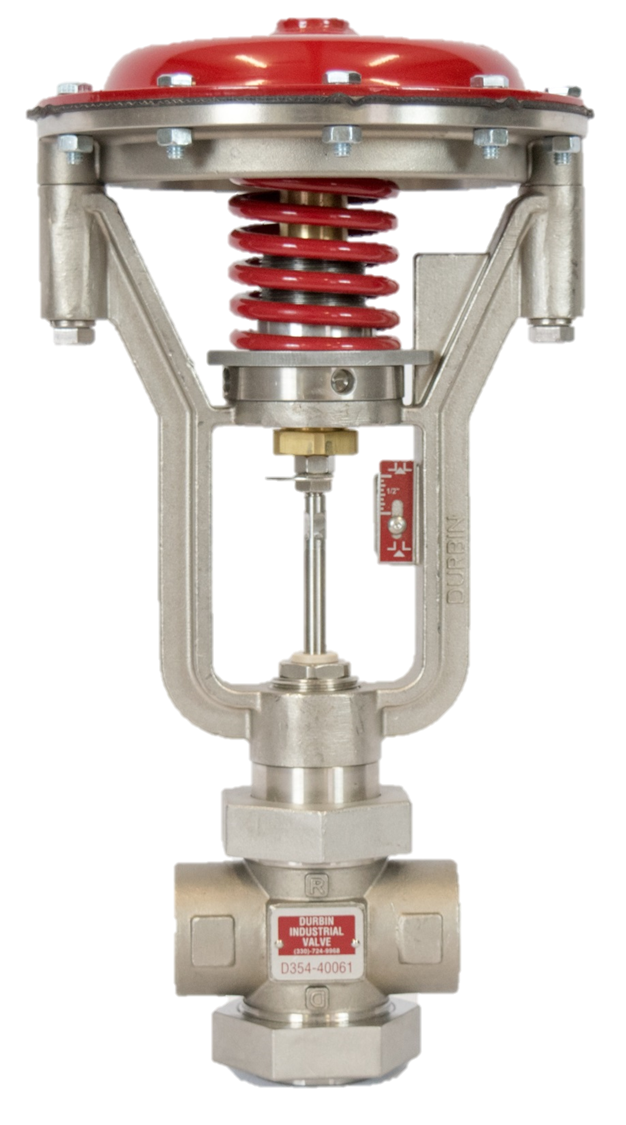

  • Overview: The Durbin Model "V" control valve is engineered to provide linear control of pressures and/or temperatures while maintaining high energy efficiency and providing a long service life.

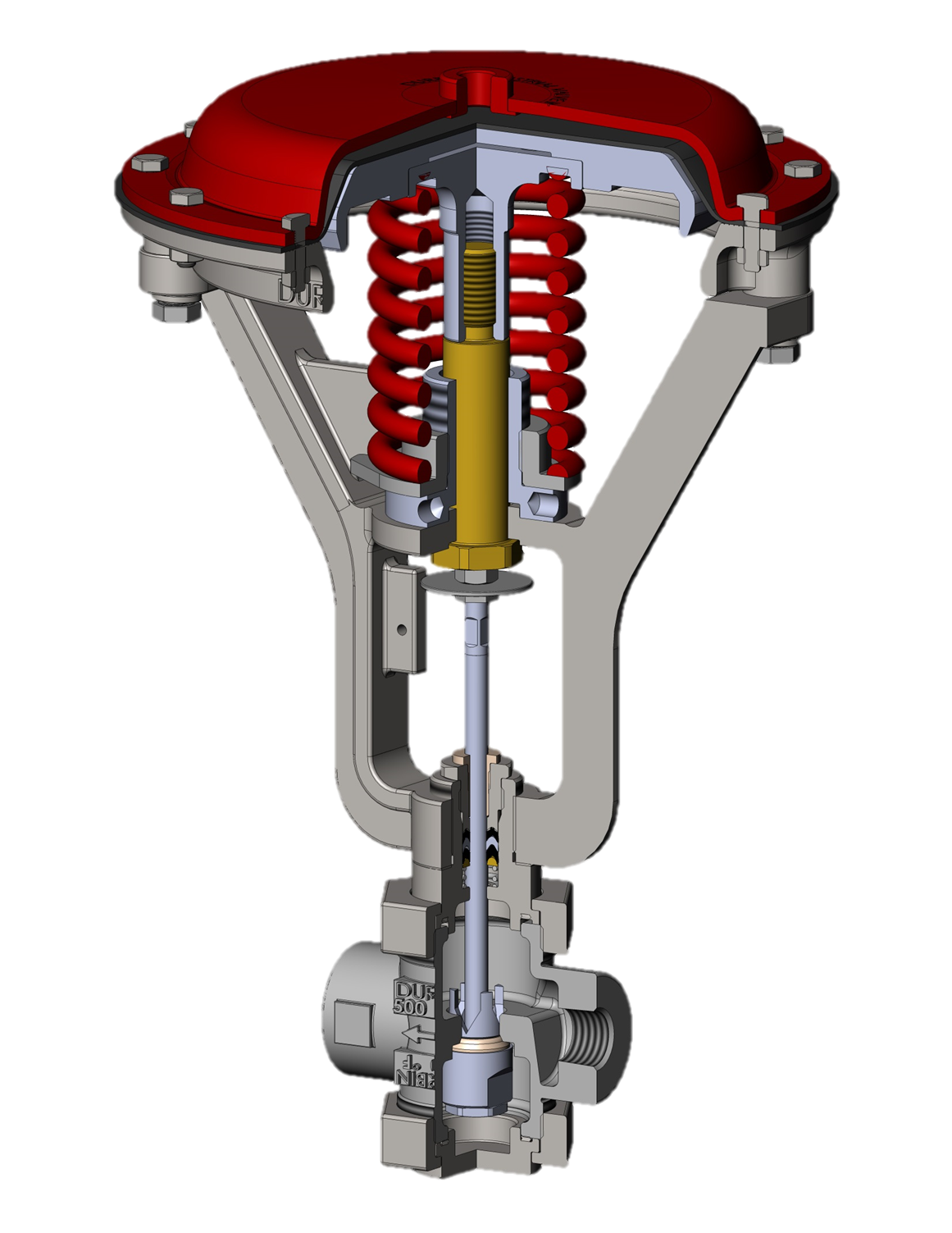

  • Materials of Construction:The Model "V" valve's wetted components are made entirely from corrosion-resistant materials. The valve body, actuating stem and seat are all constructed from stainless steel. The valve seal is made from a durable thermoplastic that withstands high temperatures and extreme process conditions. Packing consists of a strong PTFE material.


  • Application: The Model "V" is great for applications where a broad range of  control is important but a stable steady state is critical. The linear flow characteristics provide a predictable flow profile which allows the user to accurately control and predict size requirements.
