CATALOG

Valve Type: Globe

Function: 2-way/3-Way

Action: Normally Closed/Normally Open

Actuation: Pneumatic

Pilot Range: 35-40 psi  (2.4-2.8 bar)

Sizes: ¼” -2”(DN 6 to DN 50)

Pressure Ratings: Up to 500 psi (34 bar)

Temperature Ratings: -40°F to 450°F  (-40°C to 231°C)

Connection Style: Threaded (NPT/BSPT)

Seat Type: Soft Seat & Hard Seat

Leakage Rate: ANSI/FCI 70-2 class VI

Cv: Maximum of 54.51

Media: Most process fluid types; gas, liquids and steam

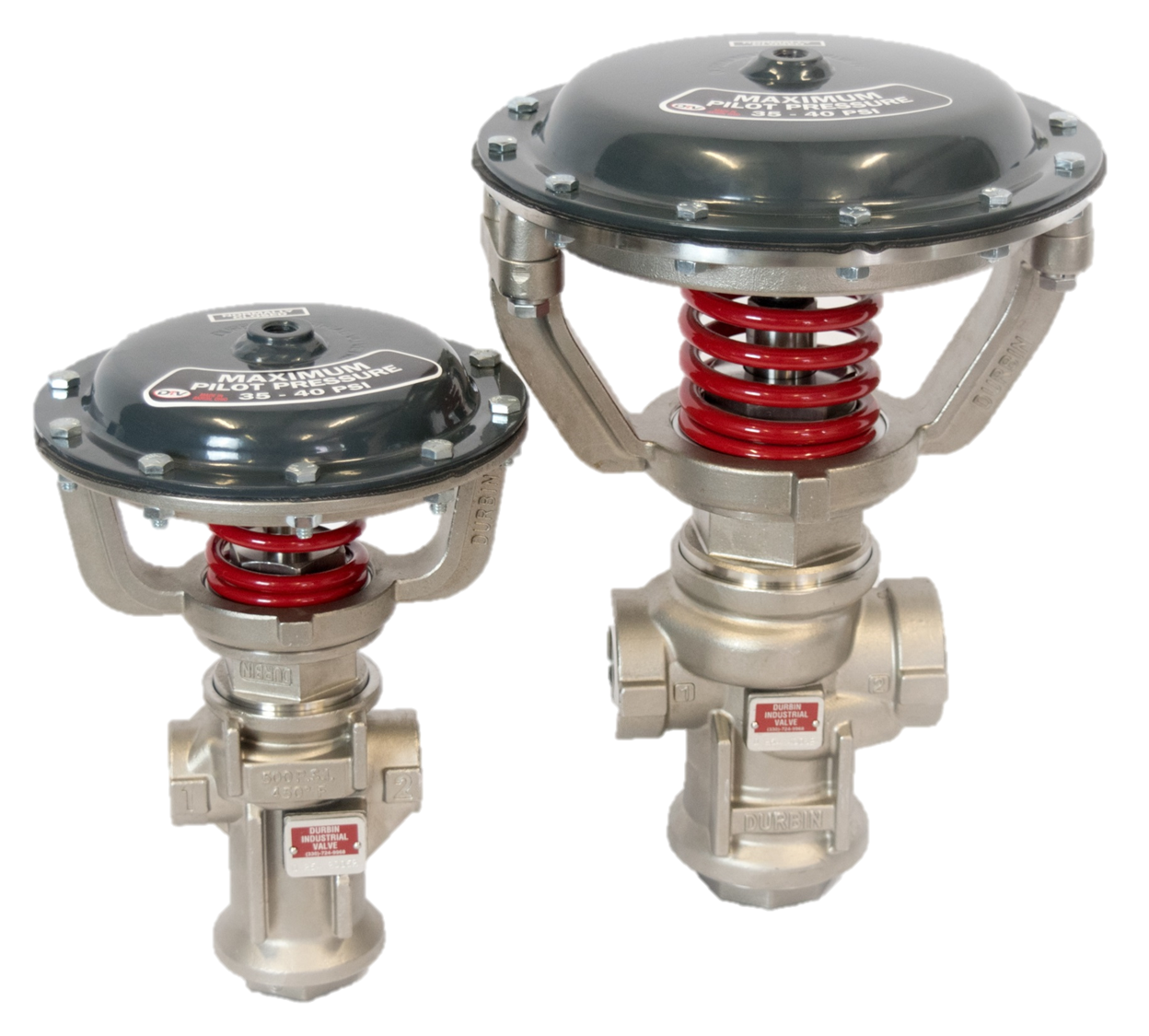

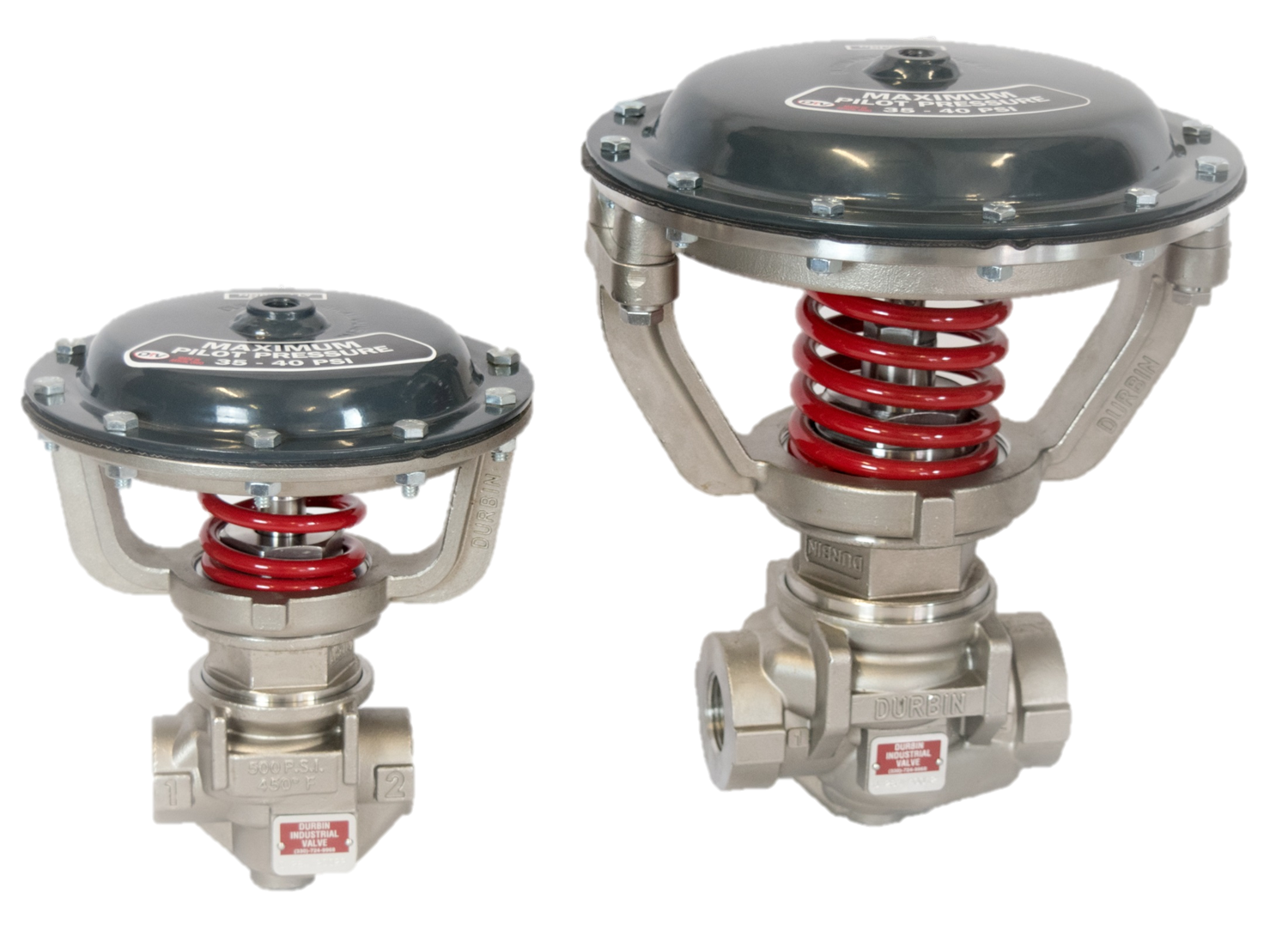

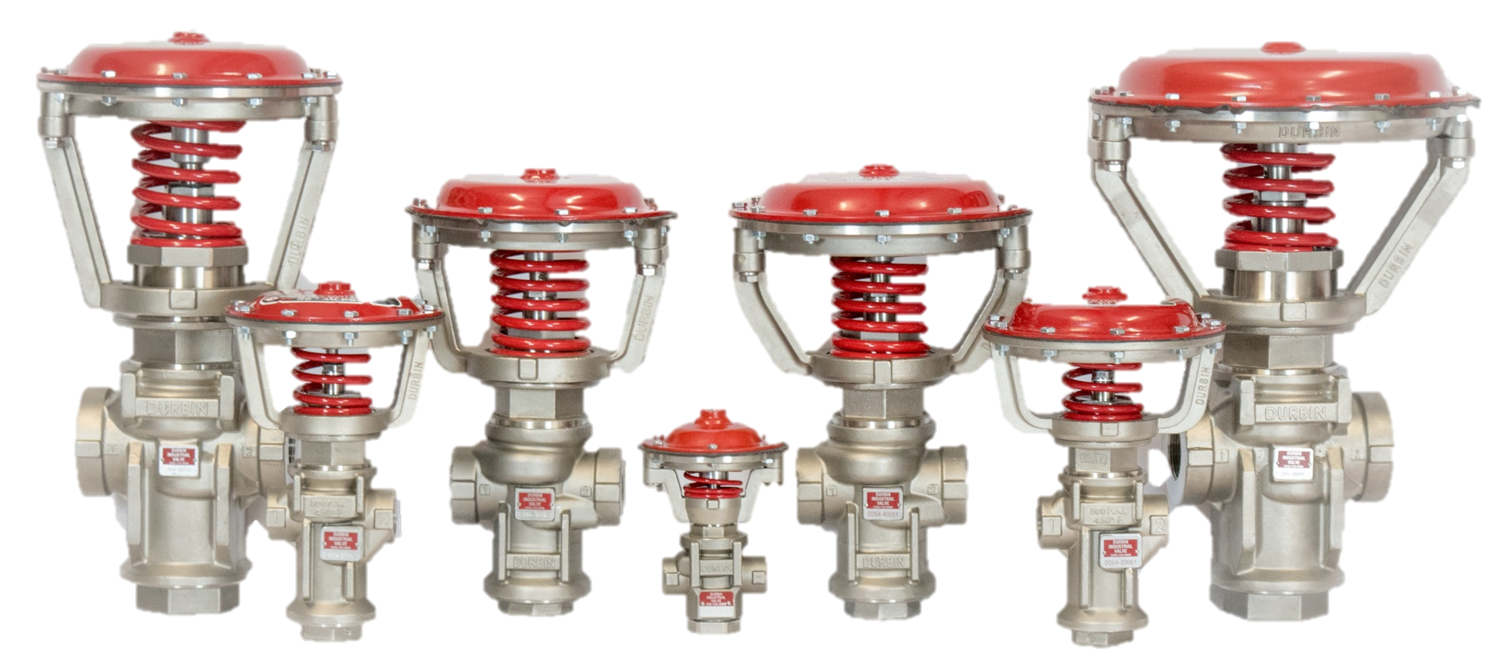

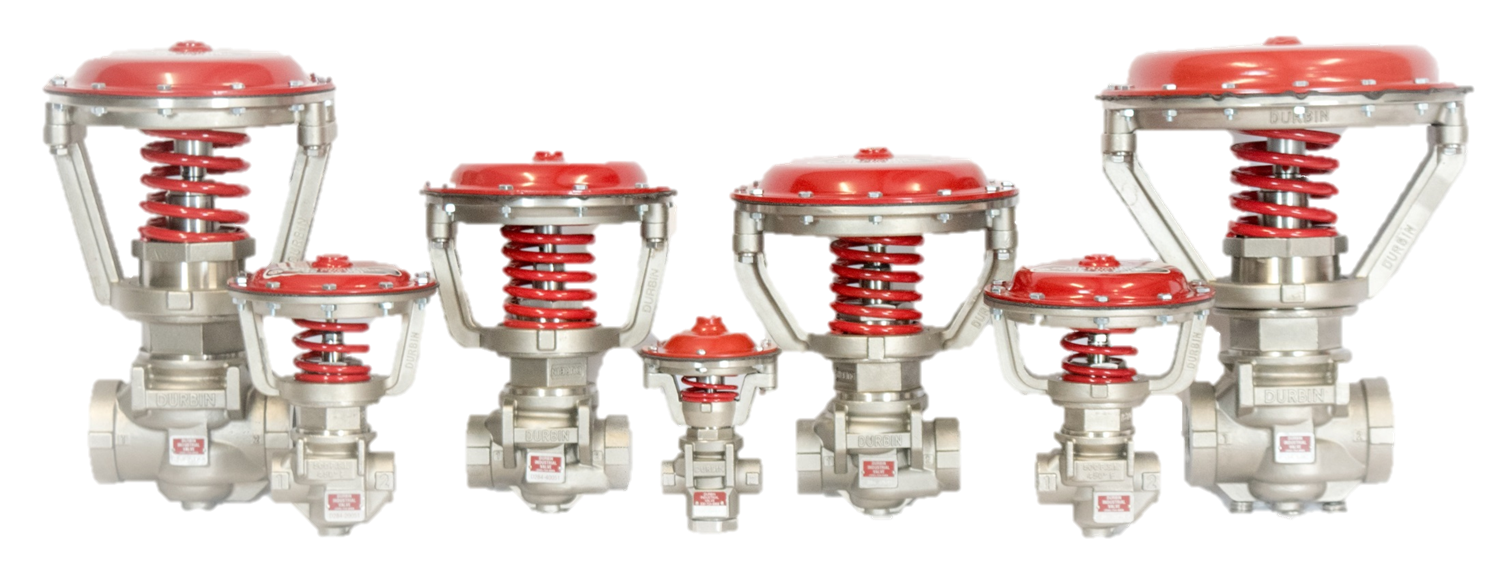

The Durbin SC style replacement valves provide a drop-in replacement for traditional industrial process-control valves that have serviced the industry for over half a century.  Durbin has taken the proven durability and reliability of this legacy product and combined it with modern engineering technology and upgraded materials.  The traditional bronze construction has been updated to a stainless steel design.   A durable powder-coating is used on springs and lids.  All stems, whether hard-seated or soft-seated, are constructed from a tough and durable stainless material to withstand the harshest process environments.   Whether you need normally open or normally closed,  2-way isolation or 3-way directional, hard-seated or soft-seated, existing application or new application; the Durbin SC style replacement series has a replacement option for your needs. Select the valve type below to learn more.
